STANDARD SHOWER DRAIN

Modern bathroom design:

A new ideal - a barrier free shower environment that removes the restrictions imposed by conventional products. The wet room concept enables a minimalist approach to design, creating space, allowing freedom of movement while providing a platform to bring out the very best in the products you have chosen.

Small but significant details:

Attention to fine detail - such as drainage, is all important.Foremost it must be safe, ideally harmonious with your chosen finish, its capacity should comfortably exceed the shower output and it should be simple to maintain.Not least it must integrate within the structural fabric of thewetroom, thereby offering ongoing, leak-proof performance for total peace of mind.

Our line of products accentuates the shower space, allowing for maximum water evacuation and creating a feeling of spaciousness. - The linear evacuation allows more stylized designs thanks to ease of implementation of outstanding shower.

The shower channels are made of high quality material for stylish looks, effortless functionality, and an extremely smooth surface that shrugs off water and soap. Jar Italia Inc makes Shower Drain channels for every installation situation including bathroom renovation. The synergies that can be achieved by excellent technical and design qualities.

Advantages-

• High-class and spacious bathroom designs
• Available in 304 and 316 grades of stainless steel
• No limitation on tile size or slab material. No boundaries on design because of drain location
• The shower area no longer has to comply to standard dimensions, and individual architectural factors can be taken into account.
• Can be placed as threshold or curb. Can be used with any type of tiles shower configuration
• Meets ADA requirements for handicap shower entry
• Fully removable and easily cleaned stainless steel foul air trap (FAT)
• Easy maintenance
• Water tightness. Drains water more efficiently
• Durability

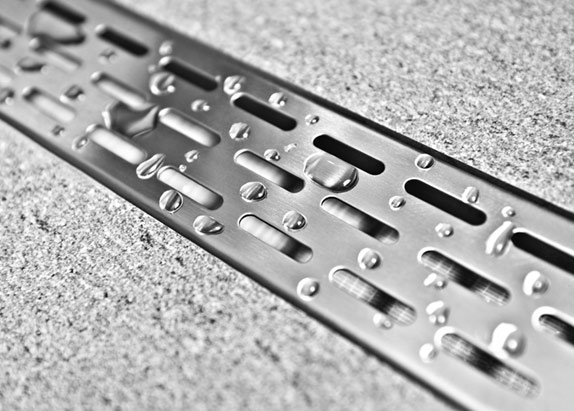

• Wide range of gratings are all grade 304 stainless steel
• Electro polished for shiny defect free surface and minimizes maintenance.
• Can be used to create wet/ dry areas
• Tiling is simplified with minimal cuts required.Reduced tiling cost due to decreased time required. Decreased tile wastage due to significantly fewer cuts required

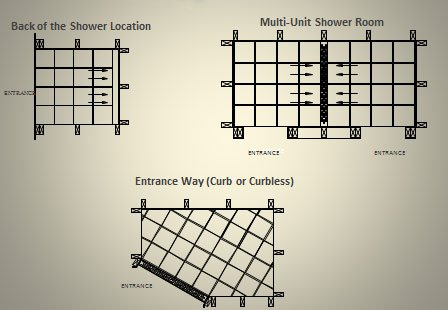

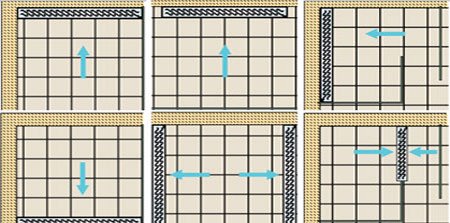

Installation

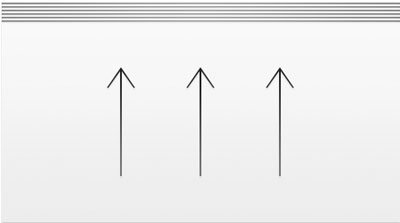

Installation against the wall – Simplest slope solution in one direction –slope away from the bathroom – no risk of bypass – use of CPE flexiblemembrane recommended.

Walk through: Installation against the wall – Slope in one direction –just shower area of whole bathroom floor can be sloped towardschannel – use of CPE flexible membrane recommended.

Walk-in: Installation against the wall – Simplest slope solution in onedirection – slope away from the bathroom – no risk of overshootingwater.

Walk-in: Installation at the entrance-Two directional slope towards the channel.Channel length should exactly fit the shower opening.

Installation at shower entrance –Slope in one direction, towards the bathroom – possible risk of bypass – slope of bathroom floor towards shower area isrecommended to prevent bypass. Channel length should exactlyfit the shower opening

Quality & Functionality

• There is no need for shower tubs, or for the most part separating walls: As a result, the shower area no longer has to comply to standard dimensions, and individual architectural factors can be taken into account.
• This produces a generous ambience thanks to a uniform floor design.
• The high quality of components is not limited to the design, material and finish; ease of handling and installation are given the same attention of details.
• The products are designed to provide a long & reliable service life. The smooth surface guarantees safe drainage and hygiene in bathroom and balconies.
• The Grating is made of grade 304 stainless steel (Electro Polished) and channel /Tray is made in Poly Carbonate ; leak tested prior to dispatch.
• The range of grating designs complements personal design preferences and can enhance the appearance of the room. Grates are also easily replaceable for a new look.

Polycarbonate Tray /Channel

• Material: Poly Carbonate.
• Height: 25 mm with inbuilt slope.
• Length: with collar 650 mm without collar 600.
• Width: with collar 120 mm without collar 50mm
• Number of outlet: One bottom central outlet
• 50 mm with inbuilt Slope

Tray Guarantee: 10 years replacement guaranteeincase of leakage or any manufacturing defects

Grating

• Height : 25 mm inside side
• Length : 599 mm
• Width : 70.5 mm. out to out
• Thickness : 1.5 mm
• Stud Length: 25 mm
• Plating : Electro plating
• Material : Stainless Steel 304
• No. of slots: 31 for standard grating
• Per slot cavity: 5.2 x35 mm
• Weight load capacity (kg) : 350
• Nut length: 25 mm
• Tile Adjustment : up to 18 mm including mortar 8 Adjustable feet to achieve exact tile level

FINISHES AVAILABLE-

• Matt finish
• Mirror finish

Shower Grate Components

The basic alloy Type 304 (18-8) is austenitic steel possessing a minimum of 18% chromium and 8%nickel, combined with a maximum of 0.08% carbon. It is nonmagnetic steel which cannot be hardened byheat treatment, but instead must be coldworked to obtain higher tensile strengths.

Shower Tray Components

Made of Polycarbonate; a durable material which ishigh impact & low scratch-resistant. Polycarbonate can undergo large plastic deformations without cracking or breaking.

Technical Consideration-

The flow value for a 2” outlet varies depending upon the head of water above the grating. In the case of shower channels, a head of water is not typical in practice, due to shallower floor grades. Floor drains can have a head of water due to ‘basin’ profile of floor grades. Flow values without any accumulation (head of water) should be used when shower channels are placed around the perimeter of the shower and no shower threshold step is used.If the shower channel is installed against a wall, there may be a small amount of accumulation (head of water)depending on the layout of shower area. Grade of shower floor will determine depth of build up.

Water Flow -

If Installed against the wall - outflow rate up to 9.51 GPM (Gallons per minute ) based on the floor grade such that 0.2” (5mm) head of water possible.

If Installed at the entrance the outlet flow rate is up to 6.65 GPM (Gallons per minute) based on no water accumulation (head of water)

Hence the choice of Shower Channel generally depends on the flow values of the shower fitting. 70% of shower heads have a maximum capacity of less than 3GPM.

Jar Italia drain standard channel has an outflow of 6.65 GPM. This value assumes no head of water above drain; standard channel can be used in conjunction with the majority of shower head fittings.
